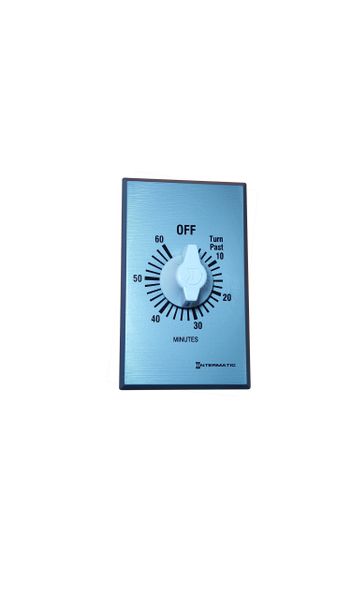

One Hour Timer

FF Series Commercial Series

SPST 1 Hour (60 Min. Auto Off)

The FF Series Commercial Auto-Off Timers are designed to replace any standard wall switch - single or multi-gang. This series of  energy-efficient mechanical timers do not require electricity to  operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Features:

•  Hold feature enables the user to override the automatic  shut-off function
• Rugged time dial plate easily withstands the abuse encountered in  commercial environments
• Commercial “brushed metal” (plastic construction) look meets  NEC requirements
• Time saving up front terminal connection with teeter-type terminals
• Press-on knob design ensures quick and easy installation
• CFL compatible

Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Ratings

Resistive:          20 Amp, 125 VAC, 50/60 Hz

                          10 Amp, 250 VAC, 50/60 Hz

                          10 Amp, 277 VAC, 50/60 Hz

Tungsten:          7 Amp, 125 VAC

Motor:                1 HP, 120 VAC, 50/60 Hz

                           2 HP, 240 VAC, 50/60 Hz

Dimensions:      2.79" H x 1.6" W x 1.19" D
